SPECIFICATIONS OF FANCOIL
Panasonic X-Premium Inverter comes with nanoe™ X technology and Panasonic Comfort Cloud App for continuous 24-hour air protection. Enjoy comfortable cooling in optimal environment with Panasonic innovative solutions such as AEROWINGS, iAUTO-X and Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO mode. While the compact design allows installation in tight spaces, its modern, elegant flair fits perfectly in any interior.
|
KEY FEATURES nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours Manage your air conditioner using your mobile device with Comfort Cloud App 15 meters long air distance with the improved new AEROWINGS iAUTO-X with Humidity Sensor lets you enjoy better sleep with optimal comfortable cooling Balances energy savings and comfort using ECO Mode with A.I. Control |
| Comfort Features | iAUTO-X, Humidity Sensor, ECO Mode with A.I. (Limited function when connected to multi-split system.) Inverter Control Sleep Mode Quiet Mode Soft Dry Operation Mode Personal Airflow Creation |
| Convenience Features | 24-Hour Dual ON & OFF Real Setting Timer LCD Wireless Remote Control Wireless LAN Remote Control For Internet Connection (Built-In) |
| Reliability Features | Random Auto Restart (32 Restart Patterns) Blue Fin Condenser Top Panel Maintenance Access Self-Diagnostic Function |
| Power Supply | Outdoor |
| Note |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
SPECIFICATIONS OF CU-3XU28YBZ COMPRESSOR

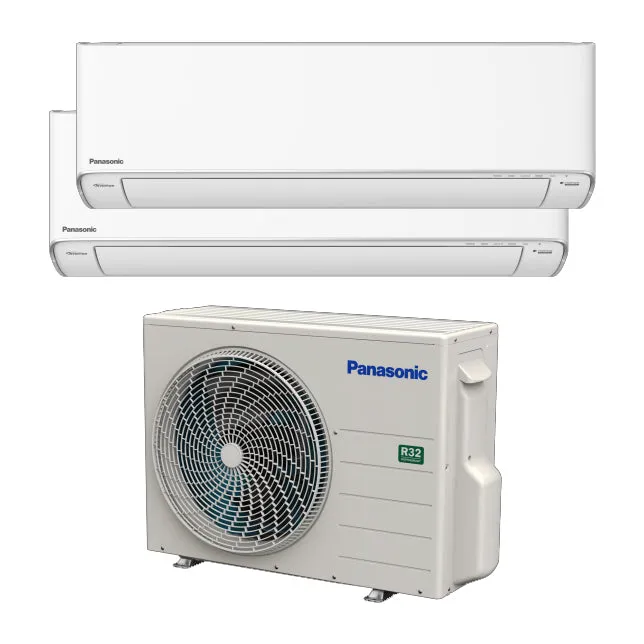

Panasonic’s Multi-Split Air Conditioning system offers multi-zone cooling solution with one outdoor unit, perfect for limited outdoor installation spaces. System 3 connects up to 3 indoor units, with independent operational settings for each indoor unit. High efficiency outdoor unit with environmentally friendly R32 refrigerant, highest 5-tick energy efficiency rating and Inverter technology. The outdoor unit is durable against harsh conditions yet reliable in providing optimal temperature control, comfort and cost savings for its occupants.
|
KEY FEATURES 5-tick energy efficiency rating Environmentally friendly R32 refrigerant Energy savings and precise temperature control with Inverter High cooling capacity of 6.6kW Durable under harsh conditions Compact design fits every building type |
| Cooling Capacity (Cooling Capacity (min-max)in-max) | 6.60 (2.80 ~ 9.80) kW 22,500 (9,550 - 33,400) Btu/h |
| Power Source | Single Phase, 220V-240V, 50Hz |
| Maximum Connectable Capacity | 12.7 kW |
| Maximum Connectable Indoor | 3 Units |
| Electrical Data | Running Current: 6.2 - 5.7 A Power Input (min-max): 1,340 (520 - 2,500) W |
| EER (min-max) | 16.79 (18.37 - 13.36) Btu/hW |
| COP (min-max) | 4.93 (5.38 - 3.92) W/W |
| Weighted COP | 5.70 W/W |
| Sound Pressure Level | High/Low 53/48 dB(A) |
| Maximum Current | 16.2 A |
| Starting Current | 6.2 A |
| Compressor Output | 1,500 W |
| Dimensions | Height: 695 mm Width: 875 ( 95) mm Depth: 320 mm |
| Net Weight | 50 kg |
| Refrigerant Pipe Diameter | Liquid Side: ø 6.35 mm x 3 Gas Side: ø 9.52 mm x 3 |
| Pipe Extension | Maximum Pipe Length (1 Room): 30 m Maximum Pipe Length (Total): 60 m Maximum Elevation Length: 15 m Additional Refrigerant Gas: Chargeless |
| Note | Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
