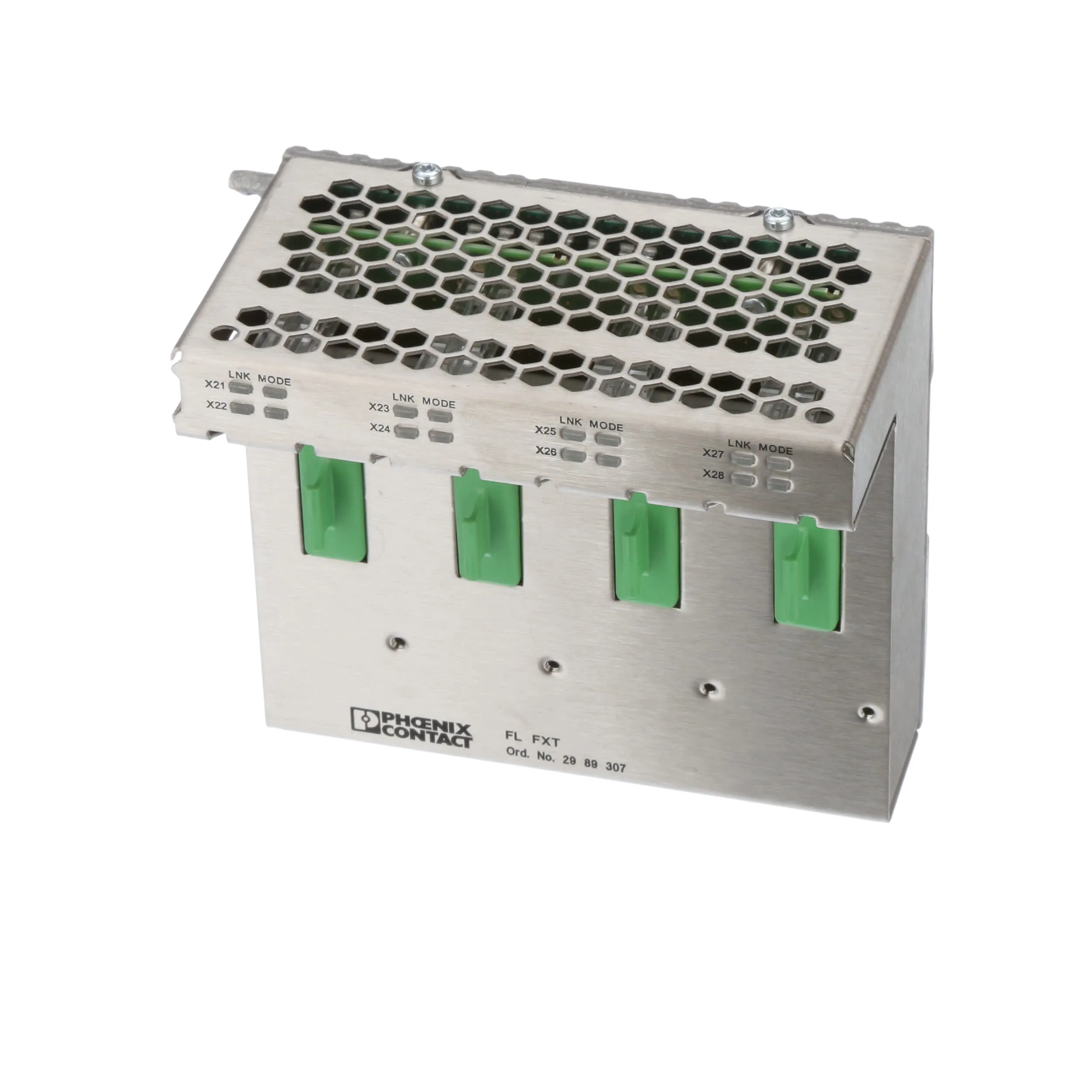

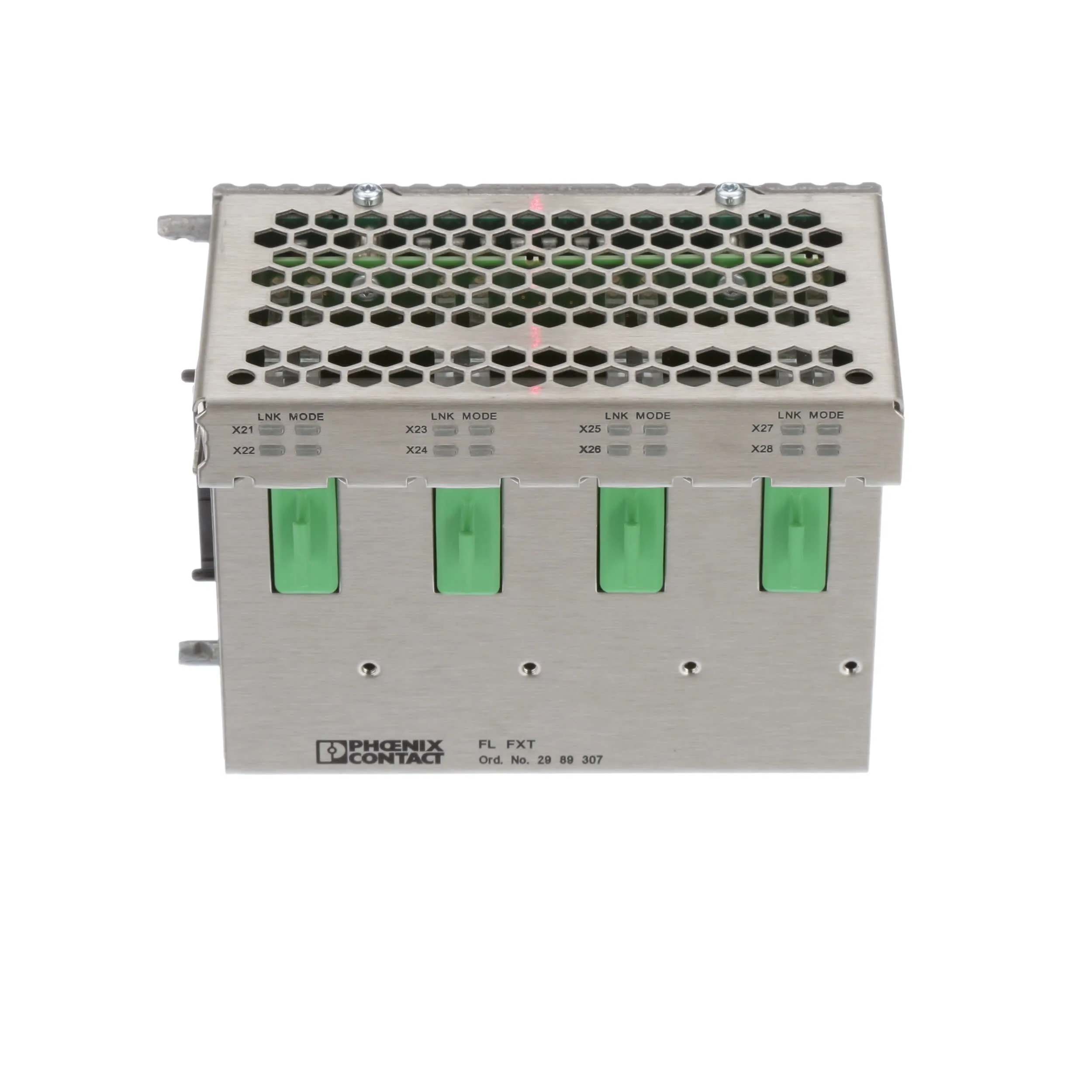

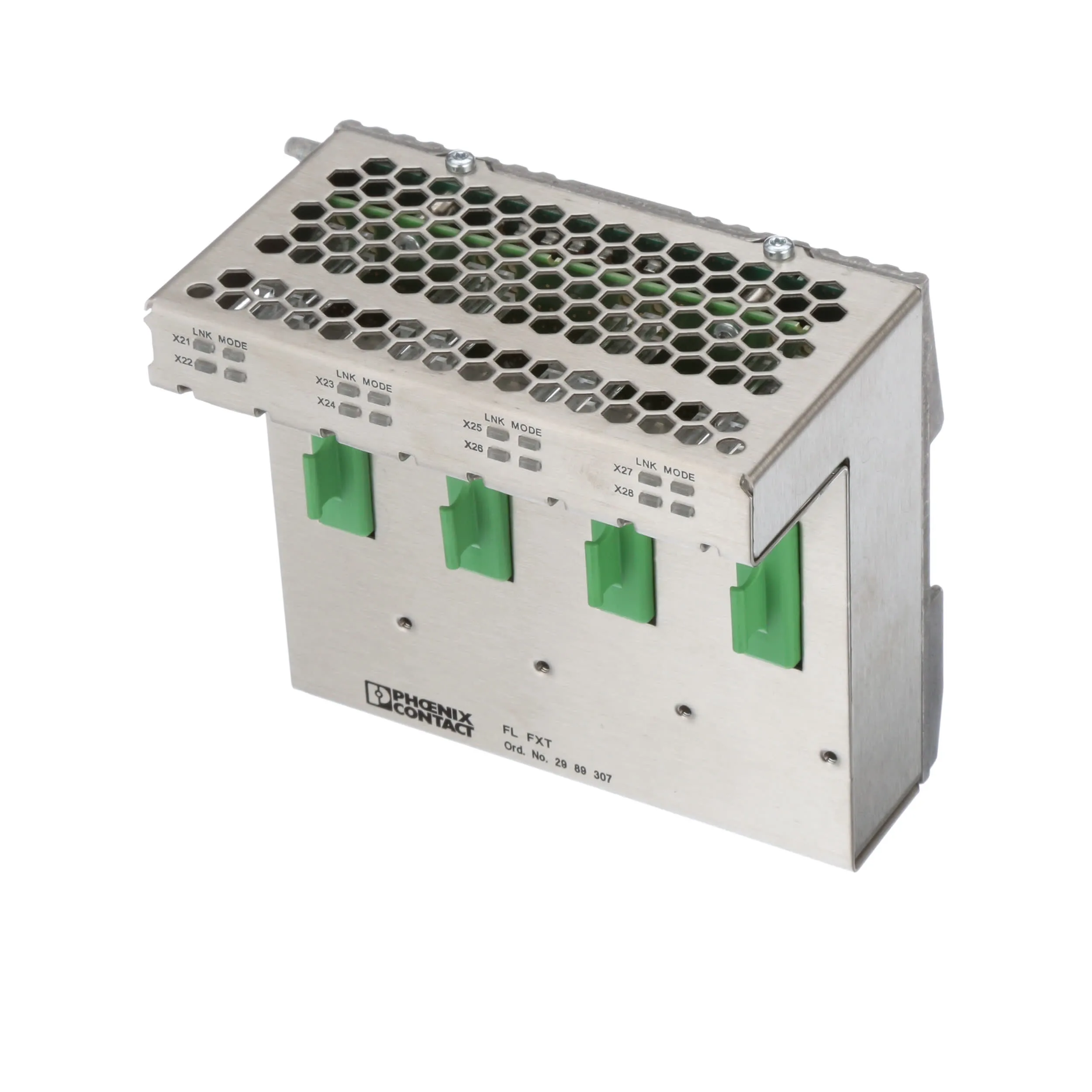

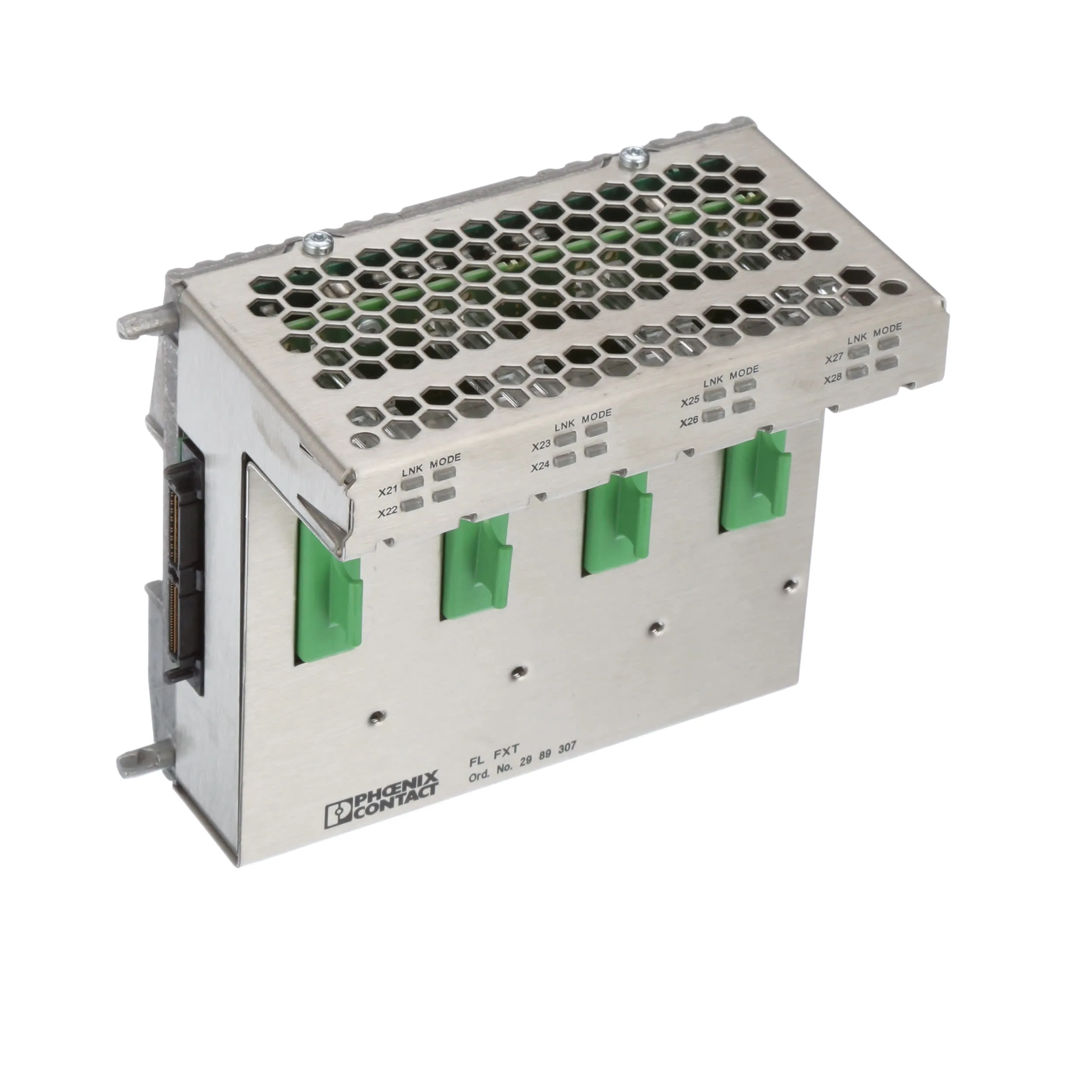

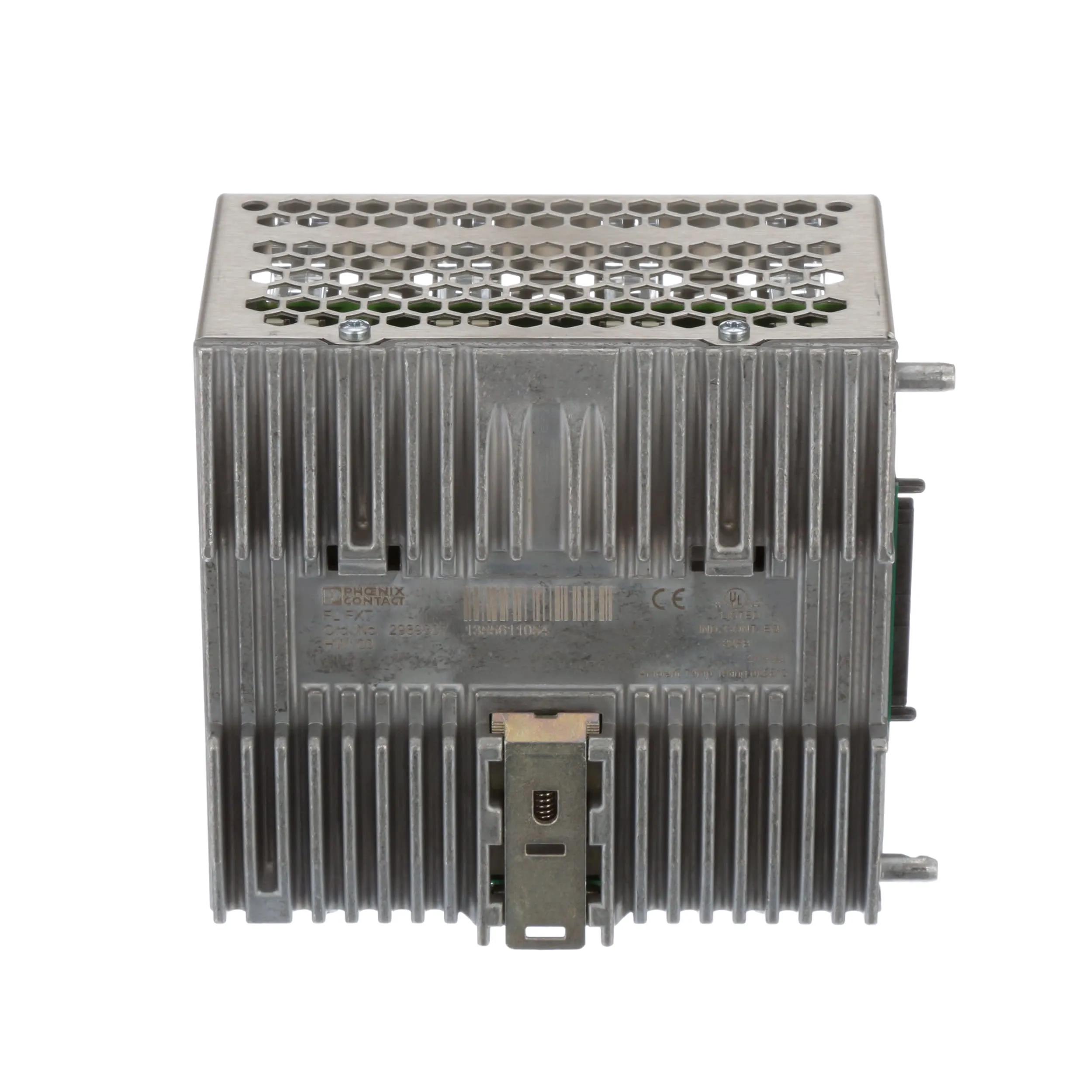

Name: Phoenix Contact 2989307
SKU: 985521

Product Details ＋

Product Attribute	Attribute Value
Accessory Type	Expansion Module
Alternate Mfr Part Number	FL FXT
Approvals	UL Listed, cUL Listed, EAC, EAC, KC, cULus Listed
For Use With	Used in Ethernet Installation Tasks
Mounting Type	DIN Rail
Primary Type	Extension Module
Series
Type	Ethernet
UPC Code	4046356435369

Overview

Phoenix Contact FL Series – Industrial Ethernet Gigabit Modular Switches:

Our most powerful switch is the Modular Managed Switch. As a Gigabit switch with optional Layer 3 function, it is particularly suitable for use as an automation backbone and for connection to the higher-level company network. A large range of combinable media modules as well as use in PROFINET RT and EtherNet/IP™ offer maximum flexibility.

The FL Series Switches offer you switch functions and NAT routing in just one DIN rail device. The network devices communicate via seven LAN ports within the machine. The eighth port is used as the WAN port for the connection to the higher-level company network. With industrial routers and Layer 3 switches from Phoenix Contact, you can integrate machines, production systems or entire subnetworks into your higher-level company network. The switch with NAT routing function combines the properties of a Managed Switch with those of a 1:1 NAT router – in a single DIN rail device. The Managed Switches with a modular design form the backbone of your automation application.

Features:

Optimum network structure, thanks to segmentation via Layer 3 switches

Easy connection of machines to the production network irrespective of the address area

Integration of systems with the same IP address areas into higher-level networks, thanks to switch with NAT function

Connection of several subnetworks via various different types of media, thanks to Layer 3 function and wide range of media

Easy device installation, thanks to reduced cabling effort

Non-proprietary use supported, thanks to standardization according to IEEE 802.3

Fast retrofitting of existing systems, thanks to easy handling

Injector:
As a compact stand-alone solution, the FL PSE 2TX PoE module converts two standard Ethernet ports to Power over Ethernet ports. In doing so, the module generates the 48 V DC required for PoE.

Switches:
The PoE switches enable easy networking of your PoE network. Robust versions are available with IP20 or IP67 protection.

Splitter:
The PD 1001 PoE splitter splits data and power locally and therefore enables even non-PoE-capable devices to be installed in remote stations in an easy and inexpensive way.
