Product Details
＋
The PEOD Overdrive Distortion Effect Pedal from Palmer is designed to saturate your guitar signal and amplifier. The clean control mixes your original guitar signal in with the overdriven signal to maintain attack and definition providing the effect of stacked amps, one set clean and the other with a distorted setting. The pedal can also be used as a booster with the clean control all the way up and the gain control at zero. With the clean control at zero, the pedal provides classic overdrive effects.
| Type | Guitar effect pedal |

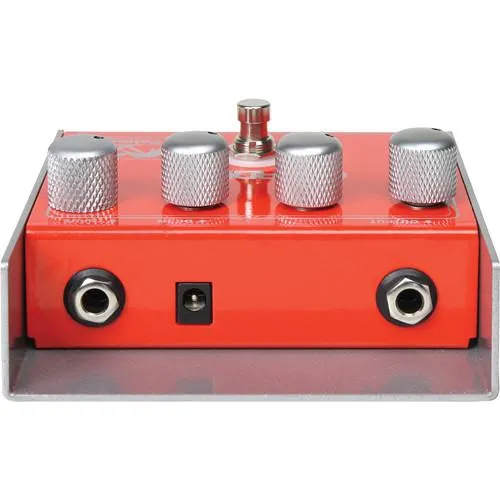

| Input Connections | 1 x 6.3 mm input jack |
| Input Impedance | 1 MΩ |
| Output Connectors | 1 x 6.3 mm jack |
| Output Impedance | 100 kΩ |
| Residual Noise | -85 dB |

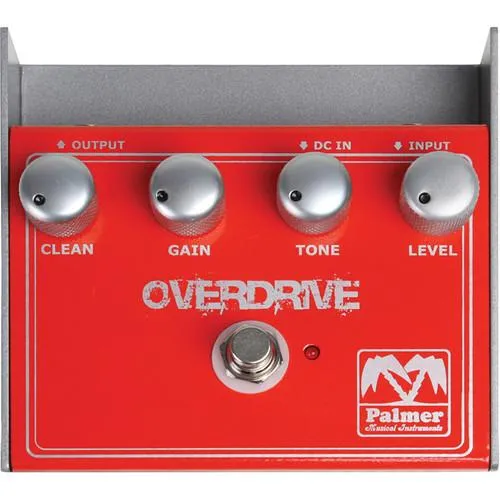

| Controls | 1 x Knob: Clean 1 x Knob: Gain 1 x Knob: Level 1 x Knob: Tone 1 x Footswitch |
| Indicators | On/Off |
| Operating Voltage | 9 VDC power supply, 9 V block |
| Power Consumption | 12 mA |
| Material | Powder-coated sheet steel |
| Dimensions (WxDxH) | 4.7 x 4.7 x 2.4" / 120.0 x 120.0 x 60.0 mm |
| Weight | 1.72 lb / 0.78 kg |
