Product Details
＋
Features

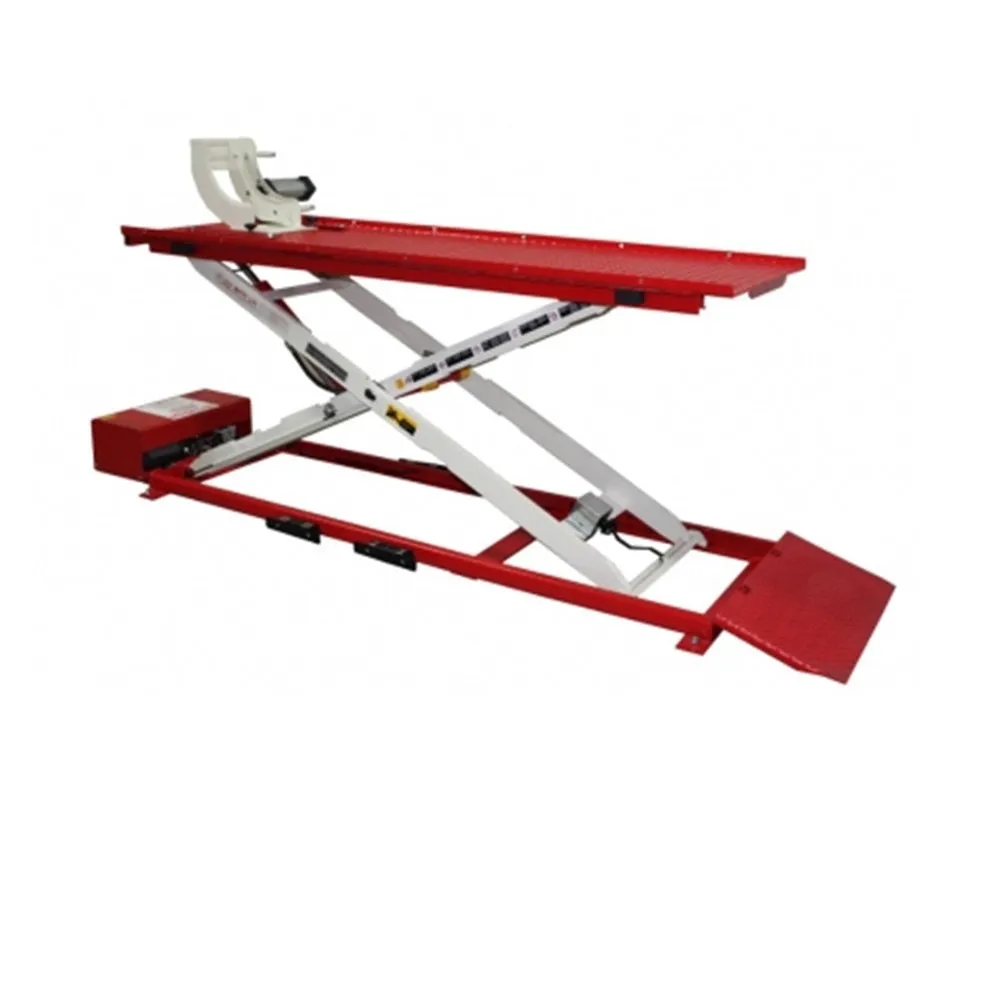

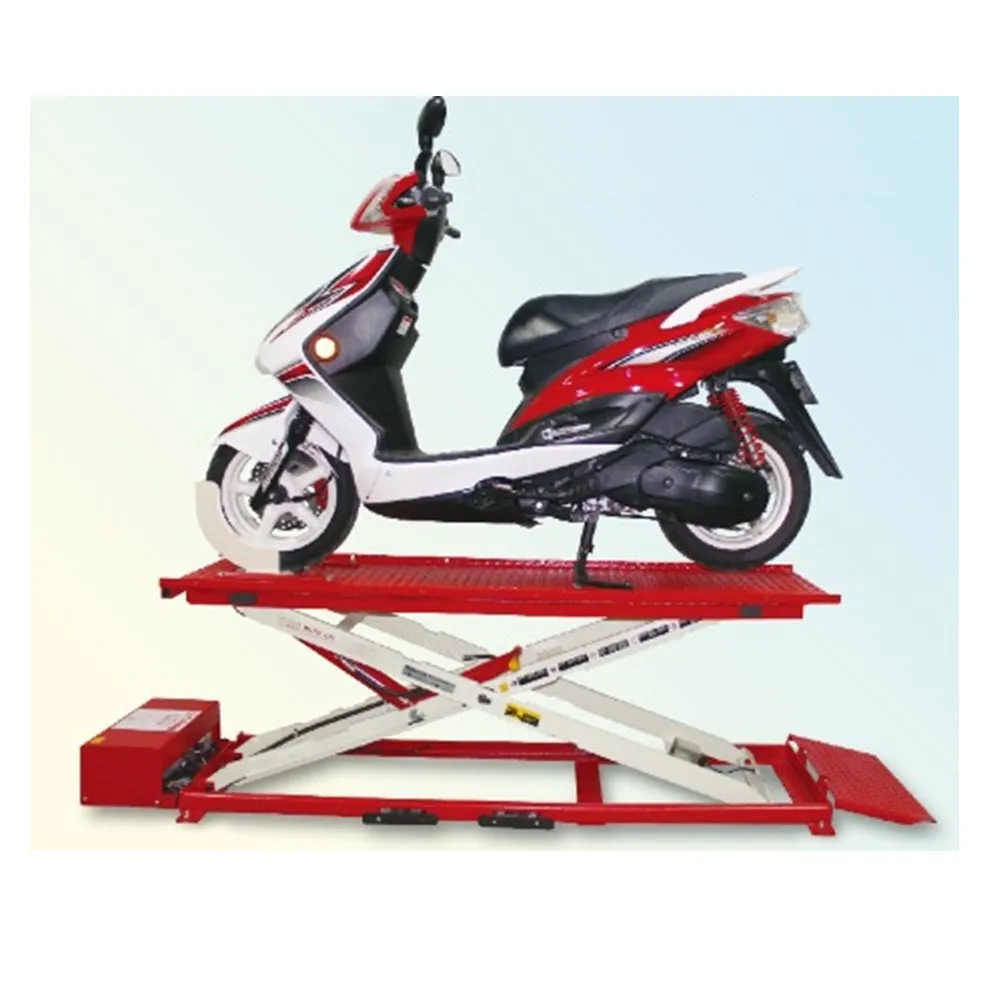

- Ultra-Thin Electro-Hydraulic Motorcycle Lift
- Safety Features:
- Height limit switch
- Safety valve for anti-explosion of hydraulic system
| Overall dimension: | Length 2770 mm × Width 720 mm × Height 180 mm |
| Overall Power system size: | Length 250 mm x Width 490 mm x Height 180 mm |
| Panel size: | Length 2220 mm × Width 720 mm (ramp plate length 300 mm × width 540 mm) |
| Lifting height of the machine: | 1300 mm |
| Height of the machine above the ground: | 80 mm |
| Power: | Power design Double hydraulic cylinder jacking design |
| Lifting weight: | 500 kg |
| Machine lifting method: | Double-sided foot switch, wireless remote control, raising electric hydraulic motor control, lowering electric hydraulic valve |
| Power supply: | 110 V／220 V AC (according to customer choice) |
| Basic equipment: | Medium/large double-cylinder pneumatic wheel clamping device × 1 set (according to customer's choice), seat belt × 1 pc, foot switch x 1 set |
