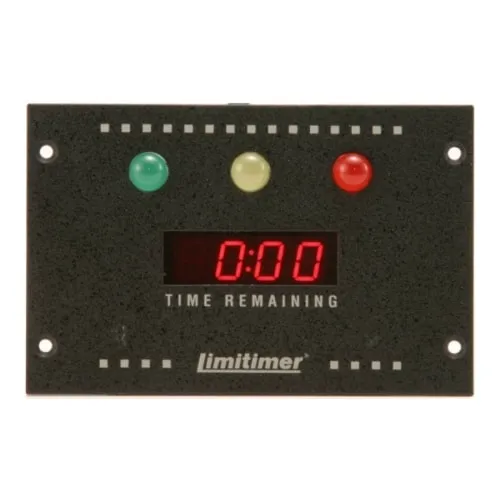

The Flush-Mount Signal Light is a remote signal light designed to be permanently installed in the well of the podium.  It has a 4-digit 7-segment display and green-yellow-red phase lights.

By using our Power Booster (Model PSL-PB6) you can interpose additional power and drive additional signal lights over longer cable runs.

The switch settings control local behavior:

• Which programs are to be displayed
• Whether time display continues to count (up) after zero
• Whether lights are enabled
• Whether digital display is enabled

Specifications

• Receives power and data over cable connection to LImitimer or TimePrompt
• Connection: RJ-45 (Cat-5 cable) – single port
• Required depth for circuit board: 1.50″
• Minimum hole opening: 3.3″ x 2.7″

Dimensions

• 4 ¾“ x 3” x 1¼”
• Weight: 4.6 oz.
