Name: Ahuja SSB-85FX Medium Power PA Mixer Amplifier
SKU: 221127

Product Details ＋

Note: This is a B2B Product

-Prices are indicative and discounts available based on quantities

-Design services available for these systems. Please contact our team for support on , or .

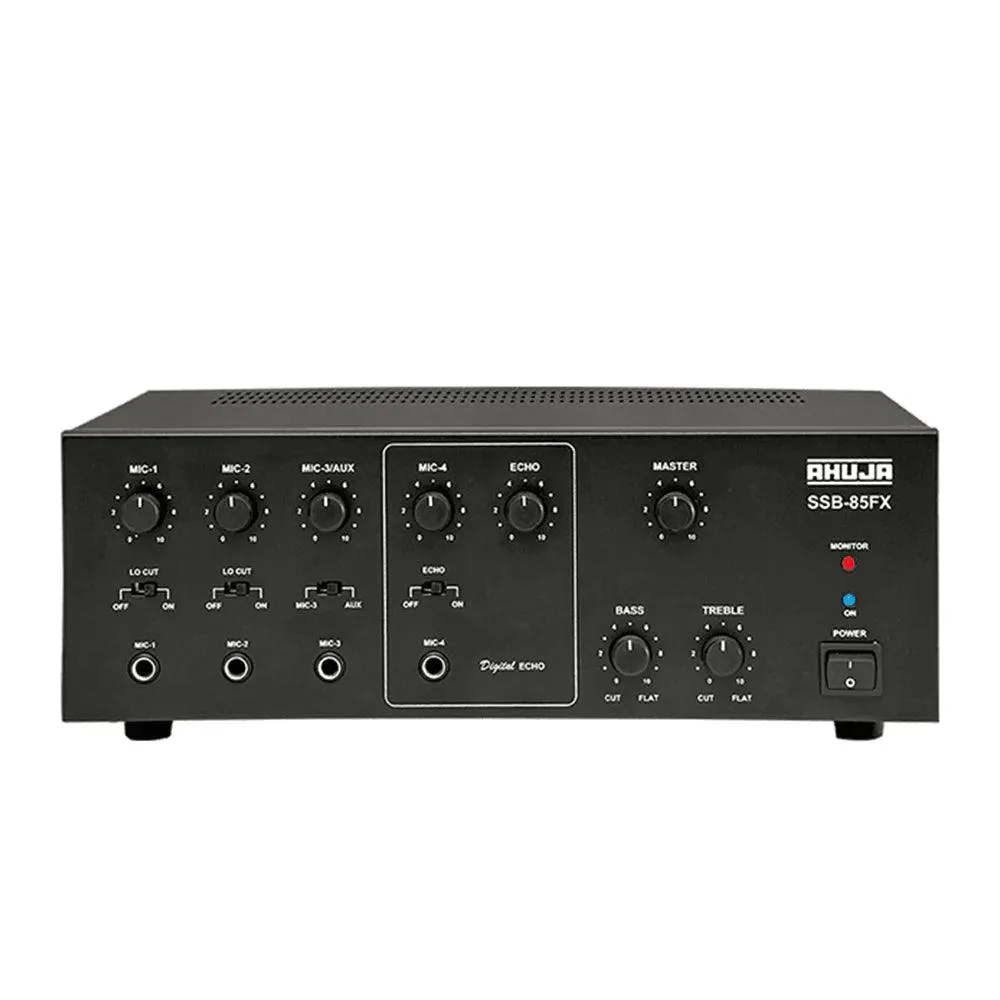

Ahuja SSB-85FX Medium Power PA Mixer Amplifier

Features

4 Mic & 1 Aux Inputs.
Built-in digital echo effect on Mic-4.
Mic-3 is alternate to Aux through the switch.
Mic-1 & Mic-2 having LO-CUT facility.
Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
Cut type Bass & Treble controls.
Instant transfer to DC power (Car Battery) if AC power fails.

Tech Specs

Power Output	110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	4×Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470kΩ
Frequency Response	65-15,000Hz ±3dB
Signal to Noise Ratio	60dB
Tone Controls	Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Outputs	Preamp 200mV/600Ω
Speaker Outputs	4Ω, 8Ω, 16Ω, 70V & 100V
Power Supply	AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery)
Power Consumption	AC: 180VA DC: 3A
Dimensions	W355 × H133 × D285 mm
Weight	8.5kg
