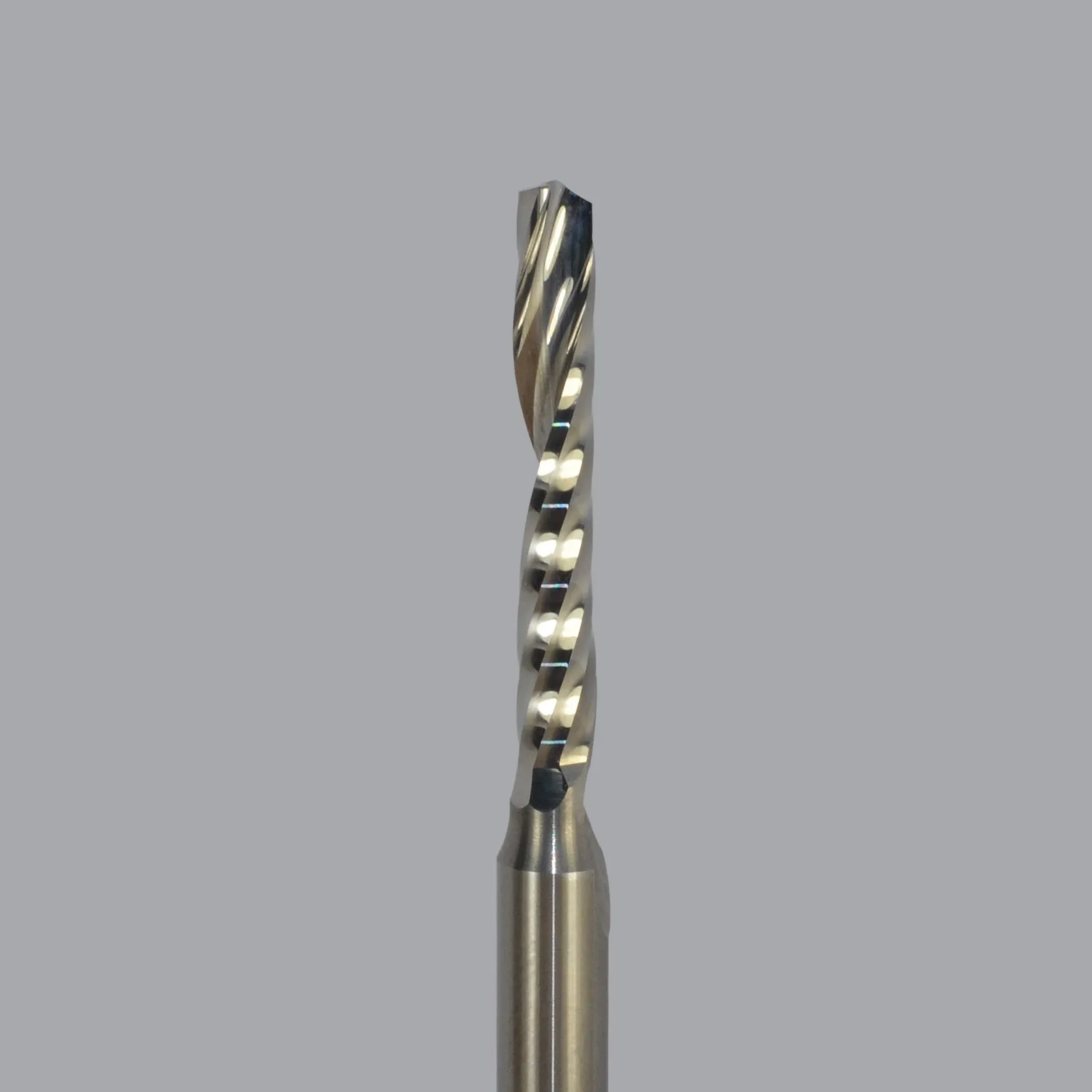

Name: 65-020, 0.1875" Dia, 1.2" LOC, 0.25" Shank Dia, 3" OAL, Single Flute Router Bit
SKU: 2016436

Product Details ＋

The polished flute allows for razor sharp cutting edge and easy chip evacuation. The tool is available in a upcut spiral for improved chip evacuation.

Application: Plastics, Wood, Aluminum, Solid Surfaces

ITEM NO.	CUTTING DIA	LOC	SHK DIA	OAL	FLUTES
	0.0625 in	0.2500 in	0.1250 in	2.0000 in	1
	2.00 mm	6.00 mm	3.00 mm	50.00 mm	1
	0.1250 in	0.2500 in	0.2500 in	2.0000 in	1
	0.1250 in	0.5000 in	0.2500 in	2.0000 in	1
	0.1250 in	0.5000 in	0.1250 in	2.0000 in	1
	0.1875 in	0.6250 in	0.2500 in	2.0000 in	1
	5.00 mm	16.00 mm	6.00 mm	64.00 mm	1
	0.1875 in	0.6250 in	0.1875 in	2.0000 in	1
	0.1875 in	1.2500 in	0.2500 in	3.0000 in	1
	0.1875 in	0.8750 in	0.2500 in	2.5000 in	1
	0.2500 in	0.6250 in	0.2500 in	2.0000 in	1
	6.00 mm	16.00 mm	6.00 mm	64.00 mm	1
	0.2500 in	0.8750 in	0.2500 in	2.5000 in	1
	0.2500 in	1.2500 in	0.2500 in	3.0000 in	1
	0.2500 in	1.5000 in	0.2500 in	3.0000 in	1
	0.3750 in	1.1250 in	0.3750 in	3.0000 in	1
	10.00 mm	29.00 mm	10.00 mm	76.00 mm	1
